Overview - Drum Brake, Twist Beam Rear Suspension

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

After disassembling the drum brake, depress brake pedal firmly several times with vehicle stationary so that the brake pads are properly seated in their normal operating position.

Use Brake Charger/Bleeder Unit VAS 5234 to extract brake fluid from brake fluid reservoir.

Install the Brake Pedal Actuator VAG 1869/2 to relieve pressure before removing a brake cylinder or disconnecting a brake hose.

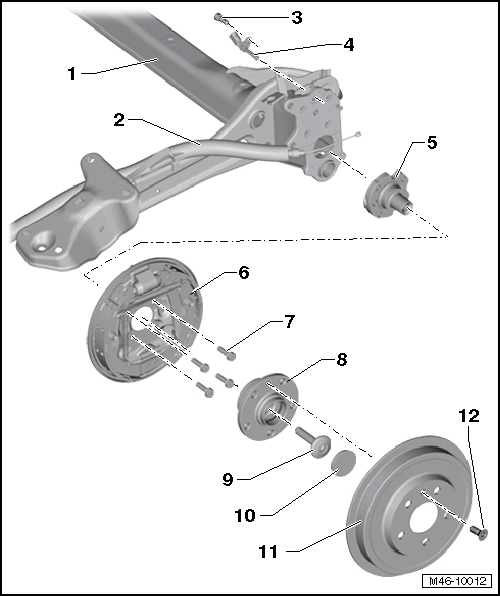

Fig 1: Identifying Rear Drum Brake Assembly Overview
GWWM46-10012Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Axle Beam
  2. Brake Cable
  3. Bolt
    • 8 Nm
  4. Rear Speed Sensor
  5. Axle Stub
  6. Brake Carrier with Brake Shoes
  7. Bolt
    • 30 Nm + 90°
    • Quantity: 4
    • Always replace if removed
  8. Wheel Bearing Unit
  9. Bolt
    • Always replace if removed
  10. Cover
  11. Brake Drum
    • Drum brake diameter: 230 mm
    • Wear limit: 231.5 mm
    • Set back before removing brake drum. Refer to REAR DRUM BRAKE, RESETTING .
    • Removing and installing. Refer to BRAKE DRUM .
    • Clean carefully and check for wear and damage, make sure the dimensions are correct and that the brake surface is perfect.
  12. Bolt
    • 8 Nm
