Coolant System Component Location, Transmission Side

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Coolant Hose Connection Diagram. Refer to COOLANT HOSE CONNECTION DIAGRAM .

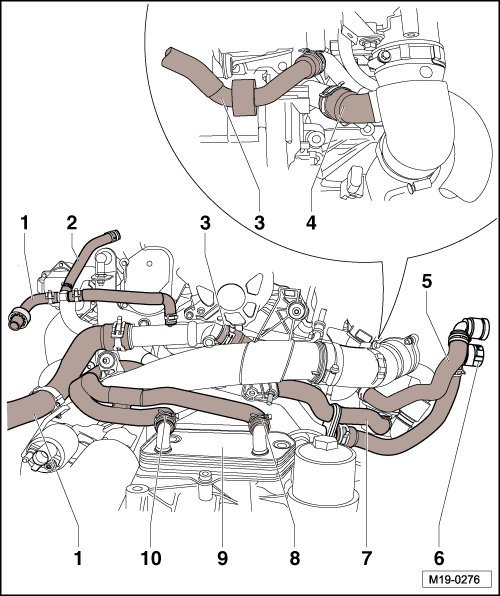

Fig 1: Identifying Cooling System Components Overview, Transmission Side
GWWM19-0276Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Coolant Supply Hose
  2. Coolant Hose to the Ventilation Pipe. See -item  4-
  3. EGR Cooler Return Coolant Hose
  4. Coolant Return Hose
  5. Heat Exchanger Coolant Supply Hose
  6. Heat Exchanger Coolant Return Hose
  7. EGR Cooler Supply Coolant Hose
  8. Transmission Oil Cooler Coolant Supply Hose
  9. Transmission Fluid Cooler
  10. Transmission Oil Cooler Coolant Return Line
