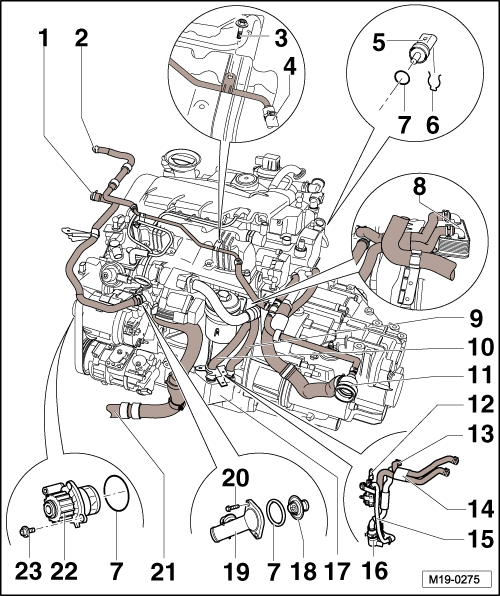

Coolant System Component Location, Front, With Engine Pre-Warmer
WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Coolant Hose Connection Diagram. Refer to COOLANT HOSE CONNECTION DIAGRAM .
- Lower Coolant Reservoir Hose
- Upper Coolant Reservoir Hose
- Bolt
- 10 Nm
- Ventilation Pipe
- Engine Coolant Temperature Sensor -G62-
- Clamp
- O-Ring
- Replace after removing
- Transmission Fluid Cooler
- Only on vehicles with the dual clutch transmission
- Engine Oil Cooler Coolant Supply Hose
- On vehicles without a transmission fluid cooler
- From the connection on the cylinder block
Transmission oil cooler coolant return line
- On vehicles with a transmission oil cooler
- Engine Oil Cooler Coolant Return Hose
- To the Upper Radiator
- Bracket for Wiring Harness and Coolant Pipe
- Secured on the oil filter bracket OIL FILTER HOUSING/OIL PRESSURE SWITCH OVERVIEW
- Coolant Hose
- To the coolant pipe on the cylinder block
- Coolant Hoses
- For the transmission oil cooler
- Only on vehicles with the dual clutch transmission
- Coolant Pipe
- for the engine preheater
- Assembly Overview. Refer to ENGINE PRE-WARMER OVERVIEW .
- Connection to the engine preheater and the engine oil cooler return line. See -item 10-
- Secured in the upper area on the bracket for the wiring harness and coolant pipe OIL FILTER HOUSING/OIL PRESSURE SWITCH OVERVIEW
- Secured in the lower area on the charge air pipe with the engine preheater bracket
- Engine Preheater
- Assembly Overview. Refer to ENGINE PRE-WARMER OVERVIEW .
- For removing and installing, refer to ENGINE PREHEATER .
- Engine Oil Cooler
- Coolant Thermostat
- Checking: warm the thermostat in water
- Opens at: approximately 87°C
- Stops at: approximately 102°C
- Opening travel: minimum 7 mm
- Coolant Thermostat, Removing and Installing. Refer to 4/2-WAY VALVE WITH COOLANT THERMOSTAT .
- 4/2-Way Valve with Thermostat, Removing and Installing, refer to 4/2-WAY VALVE WITH COOLANT THERMOSTAT
- Connecting Piece
- Bolt
- 15 Nm
- Hose to the Lower Radiator
- Coolant Pump
- Bolt
- 40 Nm
