Engine Pre-Warmer Overview

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

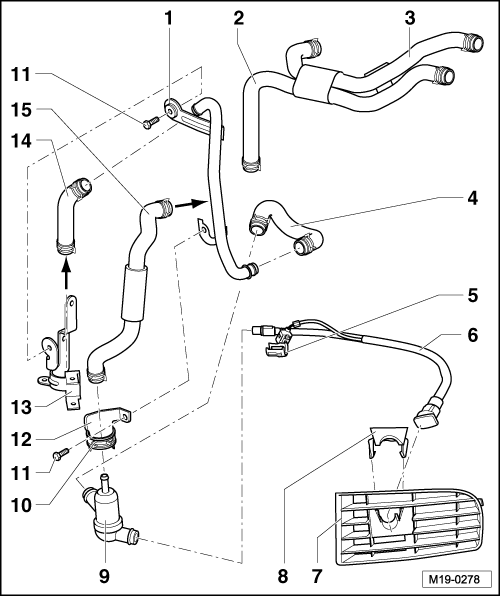

Fig 1: Identifying Engine Pre-Heater Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Engine Preheater for Coolant Pipe
- Secured in the upper area on the bracket for the wiring harness and coolant pipe. See -item 13-
- Secured in the lower area on the charge air pipe with the engine preheater bracket
Coolant Hose from the Cylinder Block Connection to the Transmission Oil Cooler
Coolant Hose from the Transmission Oil Cooler to the Engine Oil Cooler
Coolant Hose from the Engine Preheater Coolant Pipe to the Engine Pre-Warmer
Retainer
External Power Supply Connecting Wire
Left Vent Grille
-- Air Grille, Removing and Installing, refer to Removal and Installation
Bracket
Engine Preheater
- For removing and installing, refer to ENGINE PREHEATER .
Engine Preheater Clamp
- Secured on the bracket
Bolt
- 10 Nm
Engine Preheater Bracket
Bracket for Wiring Harness and Coolant Pipe
- Secured on the oil filter bracket OIL FILTER HOUSING/OIL PRESSURE SWITCH OVERVIEW
Coolant Hose from the Engine Oil Cooler to the Engine Preheater Coolant Pipe
Coolant Hose from the Engine Preheater to the Coolant Hose on the Cylinder Block
