Connection Diagram, Vehicles Without 4/2 Way Valve

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

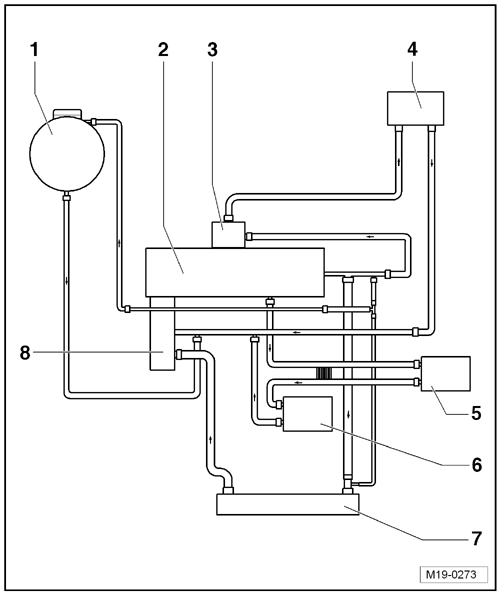

Fig 1: Identifying Coolant Hose Connection Diagram Without Engine Pre-Warmer
GWWM19-0273Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Coolant Reservoir
  2. Cylinder Head/Cylinder Block
    • Change the coolant after replacing
  3. EGR Cooler
  4. Heater Core for Heater
    • With a quick-release coupling
  5. Transmission Fluid Cooler
    • Only on vehicles with the dual clutch transmission
  6. Engine Oil Cooler
  7. Radiator
  8. Coolant Pump/Thermostat
