Selector Shaft Seal

WARNING: This page is about a different car, the 2014 Volkswagen Tiguan, 2013 Volkswagen Tiguan, and 2012 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Pulling HookT20143
SleeveVW 423
Torque Wrench (5-50 Nm)V.A.G 1331

Removing

-- Remove the relay lever with the cable retainer. Refer to Figure.

-- Remove the transmission shift lever.

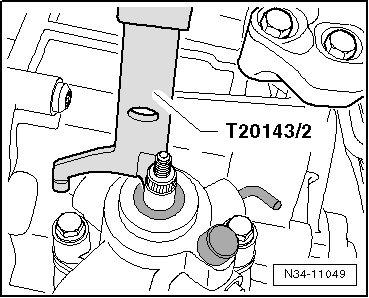

Fig 1: Carefully Pry Out Selector Shaft Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully pry out the selector shaft seal.

Installing

-- Lightly lubricate the outer edge of the new seal and fill the space between the sealing lips -arrow- halfway with sealing grease for sealG 052 128 A1.

Fig 2: Identifying Oil Seals Sealing Lips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the seal all the way without bending it.

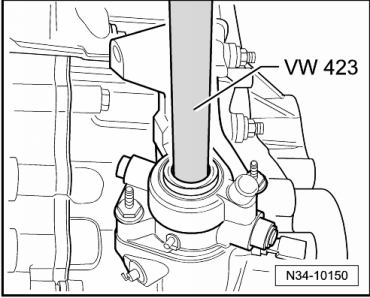

Fig 3: Installing Seal All Way Without Bending It

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Lettering/arrow on seal must point outward (toward the installation tool).

-- Install the transmission shift lever.

-- Install the relay lever with the cable retainer.

-- Check the transmission fluid level. Refer to TRANSMISSION FLUID LEVEL, CHECKING .
