Transmission Fluid Level, Checking

WARNING: This page is about a different car, the 2014 Volkswagen Tiguan, 2013 Volkswagen Tiguan, and 2012 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench (5-50 Nm)V.A.G 1331

For the correct transmission fluid, refer to the Parts Information.

-- Remove the noise insulation. Refer to Description and Operation .

-- Remove the plug -arrow-.

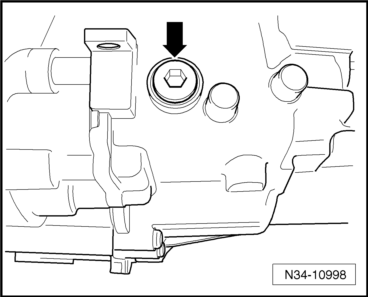

Fig 1: Removing Plug For Checking Transmission Fluid Level

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The level is correct when the transmission fluid comes up to the bottom edge of the hole.

-- Install the plug -arrow- with a new seal and then tighten it to 45 Nm.

Note the following when filling for the first time:

-- Remove the plug -arrow-.

-- Add transmission fluid until it reaches the lower edge of the hole.

-- Install the plug -arrow- with a new seal and then tighten it to 45 Nm.

-- If equipped, install the noise insulation to the transmission.

-- Install the noise insulation below the engine/transmission. Refer to Description and Operation .
