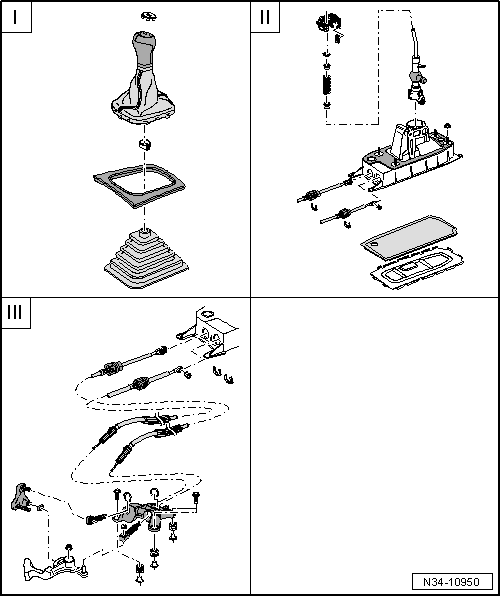

Shift Mechanism Overviews: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Tiguan, 2013 Volkswagen Tiguan, and 2012 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Note the radio code on vehicles with a coded radio.
Disconnect the ground cable from the battery when working on the shift mechanism inside the engine compartment. Refer to Removal and Installation .
Follow all the steps after connecting the battery. Refer to Removal and Installation .
When working on the shift unit in the engine compartment, remove the complete air filter housing if it is located above the shift unit. Refer to Removal and Installation .
The shift mechanism must be removed in order to replace the operating cables. Refer to SHIFT MECHANISM .
Do not bend the operating cables.
