Shift And Selector Cables

WARNING: This page is about a different car, the 2014 Volkswagen Tiguan, 2013 Volkswagen Tiguan, and 2012 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Lubricate the bearing areas and the sliding surfaces.

For the correct grease for the shift mechanism, refer to the Parts Information.

Do not bend the operating cables.

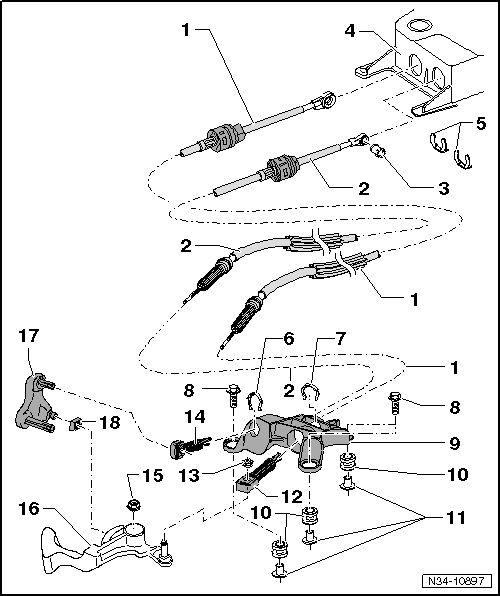

Fig 1: Identifying Shift And Selector Cables

GWWN34-10897

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Shift Cable
- Attach to the selector cable with a cable tie, refer to Fig 2.
- Attaches to the cable retainer -12-
- Installed position, refer to SHIFT AND SELECTOR CABLES, INSTALLED POSITION .
Selector Cable
- Attaches to the cable retainer -14-.
- Installed position, refer to SHIFT AND SELECTOR CABLES, INSTALLED POSITION .
- Attach to the shift cable with a cable tie, refer to Fig 2.
Bushing
Shift Housing
Lock Washer
- Do not damage the cable when removing.
- Always replace.
Lock Washer
- Do not damage the cable when removing.
- Always replace.
Lock Washer
- Do not damage the cable when removing.
- Always replace.
Bolt
- 20 Nm
- Quantity: 3
- For the cable bracket.
Cable Bracket
Grommet
- For the cable bracket to the transmission.
Spacer
Cable Retainer
- Adjust the shift mechanism after installation. Refer to SHIFT MECHANISM, ADJUSTING .
- For attaching the shift cable to the transmission shift lever.
- Do not interchange, the cable securing mechanisms for the selector cable to relay lever and for the shift cable to transmission shift lever are different.
- Allocation, refer to Fig 6.
Lock Washer
- Always replace
- Removing, refer to Fig 9.
Cable Retainer
- Adjust the shift mechanism after installation, refer to SHIFT MECHANISM, ADJUSTING .
- For attaching the selector cable to the relay lever.
- Do not interchange, the cable securing mechanisms for the selector cable to relay lever and for the shift cable to transmission shift lever are different.
- Removing from the relay lever. Refer to Fig 3.
- Pressing onto the relay lever. Refer to Fig 4.
- Allocation, refer to Fig 6.
Nut
- 23 Nm
- Always replace
Shift Lever
- With a balance weight.
- Installed position, refer to Fig 7.
- Installing, refer to Fig 8.
- Adjust the shift mechanism after installation. Refer to SHIFT MECHANISM, ADJUSTING .
Relay Lever
- Installed position, refer to Fig 7.
- Shortly after start of production: secured with a clip, refer to Figure.
- Relay lever and cable retainer, removing, see Figureand installing, see Figure.
- Adjust the shift mechanism after installation, refer to SHIFT MECHANISM, ADJUSTING .
Sliding Shoe

Fig 2: Attach the Shift Cable and Selector Cable with a Cable Tie

GWWN34-10901

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Wrap the cable tie -arrow- in a crossover pattern around the cables and secure it as illustrated.

-A- = shift cable

-B- = selector cable

Fig 3: Identifying Screwdriver To Pry Selector Cable Retainer Out Of Plastic Relay Lever

GWWN34-10886

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The relay lever is removed

-- Insert a flat blade screwdriver -A- between the bushing -B- and the relay lever.

Fig 4: Identifying Direction To Press On Cable Retainer

GWWN34-10902

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The relay lever is removed.
The cable retainer may only be installed at the bushing -arrow-.
The cable retainer must move freely on the relay lever.
It must be behind the tab -arrow 2-.

Fig 5: Removing the Relay Lever Together with the Cable Retainer
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 6: Allocation Of Cable Retainers

GWWN34-10747

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cable Retainer for:	Dimension "a"
1. - Shift cable to transmission selector lever	8.5 mm
2. - Selector lever cable to relay lever	10 mm

Fig 7: Selector Lever/Selector Relay Lever Installed Position

GWWN34-10905

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Transmission selector lever with balance weight
The relay lever fits into the sliding rail on the transmission selector lever via the sliding shoe -arrow-.

Fig 8: Identifying Installation Of Transmission Shift Lever

GWWA34-0513

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- When positioning the transmission shift lever, make sure the gap -arrow A- is placed over the missing selector shaft teeth -arrow B-.

Fig 9: Identifying Tab And Direction Of Removal -Arrow-

GWWN34-0052

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift the clamp in the -direction of the arrow-.
