Overview - Shift Unit

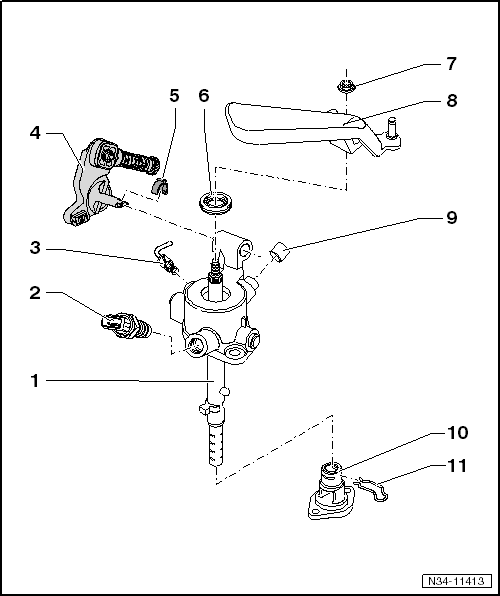

Fig 1: Exploded View Of Shift Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Gearshift Unit
- Consisting of the gearshift shaft and the gearshift cover
- The components cannot be separated from each other
Back-Up Lamp Switch -F4-
- 20 Nm
- Coat the tab lightly with MoS ₂ grease.
Locking Elbow
- For adjusting the shift mechanism
- Removing. Refer to Removing the Locking Elbow A from the Shift Cover .
- Installing. Refer to Pressing the Locking Elbow A into Selector Cover .
Relay Lever
- Installation position. Refer to Selector Lever/Relay Lever Installed Position .
Clip
- Secure the relay lever in the gearshift cover
Seal
- Replacing. Refer to SELECTOR SHAFT SEAL, REPLACING .
Nut
- 23 Nm
- Replace after removing
- Self-locking
Selector Lever
- Installing. Refer to Selector Lever/Relay Lever Installed Position .
Cap
- For the transmission ventilation
Cap
Spring
- Not installed in all transmissions
- Install if present
