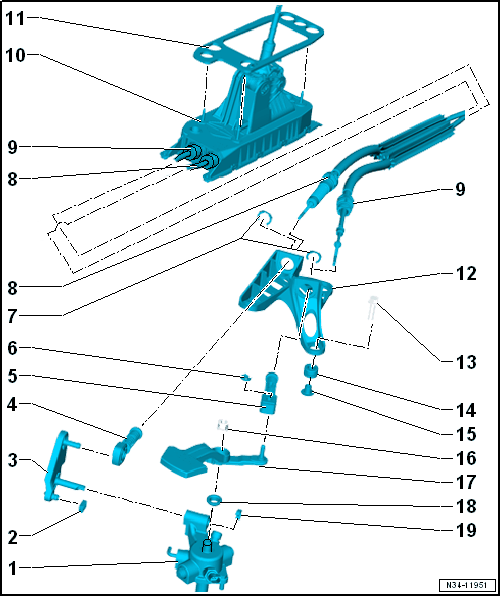

Overview - Selector Mechanism
NOTE:
Lubricate the bearing areas and the sliding surfaces.
Refer to the Parts information for the grease allocation.
- Gearshift Shaft with Gearshift Cover
- Sliding Shoe
- Relay Lever
- Allocation. Refer to the Parts information.
- Installation position. Refer to Selector Lever/Relay Lever Installed Position .
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- Relay lever and cable retainer, removing and installing. Refer to Remove the Relay Lever and the Cable Retainer.
- Cable Retainer
- For attaching the selector cable to the relay lever
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- Do not interchange, cable locking mechanisms for selector cable on linkage lever and for shift cable on transmission shift lever are different
- Allocation. Refer to Cable Retainer Allocation .
- Remove from the relay lever. Refer to With the Relay Lever Removed: Pry the Selector Cable Retainer Off of the Relay Lever.
- Press onto the relay lever. Refer to Installing
- Cable Retainer
- For attaching the shift cable to the transmission shift lever
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- Do not interchange, cable locking mechanisms for selector cable on linkage lever and for shift cable on transmission shift lever are different
- Allocation. Refer to Cable Retainer Allocation .
- Lock Washer
- Replace after removing
- Lock Washer
- Replace after removing
- Be careful not to damage the cables when removing them
- Selector Cable
- Attach to the cable retainer
- Do not bend
- Installation position. Refer to SELECTOR MECHANISM INSTALLATION POSITION .
- Gearshift Cable
- Attach to the cable retainer
- Do not bend
- Installation position. Refer to SELECTOR MECHANISM INSTALLATION POSITION .
- Selector Housing
- Seal
- Between the gearshift housing and the underbody
- Replace after removing the gearshift housing
- Self-adhesive
- Affix to the gearshift housing
- Cable Bracket
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- Hex Bolt
- 20 Nm
- For the cable bracket
- Quantity: 3
- Grommet
- Quantity: 3
- Cable mounting bracket to transmission
- Spacer
- Quantity: 3
- Nut
- Tightening specification. Refer to OVERVIEW - SHIFT UNIT .
- Selector Lever
- Insert so that master spline aligns with shift rod. Refer to Selector Lever/Relay Lever Installed Position
- Installation position. Refer to Selector Lever/Relay Lever Installed Position .
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- Selector Shaft Seal
- Replacing. Refer to OVERVIEW - SHIFT UNIT .
- Clip
