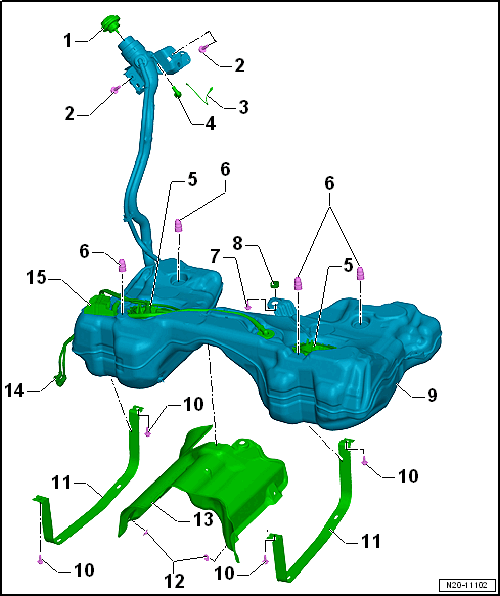

Overview - Fuel Tank, Vehicles With AWD: Notes
WARNING: This page is about a different car, the 2015 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Cap
- Turn until it clicks and locks.
- Attached to tank flap unit with fastening device
- Bolt
- 8 Nm +90° turn
- Replace after removing
- Quantity: 2
- Ground Connection
- For fuel filler tube
- For discharging electrostatic charge. Refer to Fuel Filler Tube Ground (GND) Connection .
- Ventilation Grommet
- Installed position. Refer to Ventilation Grommet Installed Position
- Fuel Delivery Unit/Fuel Level Sensor
- Overview. Refer to OVERVIEW - FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, AWD .
- Pay attention to the installed position on the fuel tank. Refer to Fuel Delivery Unit Installed Position
- Rubber Buffer
- Between the fuel tank and the body
- Pay attention to proper seating
- Quantity: 4
- Bolt
- 20 Nm +90° turn
- Replace after removing
- Guide
- Fuel Tank
- Removing and installing. Refer to FUEL TANK, REMOVING AND INSTALLING, ALL WHEEL DRIVE VEHICLES .
- Bolt
- 20 Nm +90° turn
- Replace after removing
- Quantity: 4
- Mounting Strap
- Pay attention to the installed position.
- Lock Washer
- For heat shield
- Heat Shield
- Check for secure seating.
- Fuel Lines
- Do not kink
- Removing and connecting. Refer to CONNECTOR COUPLINGS, SEPARATING .
- Note direction of arrow (fuel supply or return) on locking flange when installing
- Clipped to the fuel tank
- Installed position. Refer to Fuel Lines to the Fuel Delivery Unit
- Bracket
- For the Fuel Pump Control Module -J538-.
- Fuel Pump Control Module -J538-, removing and installing. Refer to Fuel Pump Control Module -J538-, REMOVING AND INSTALLING .
