Installing the Bearing Inner Race/Tapered Roller Bearing on the Output Flange

• There are different installed locations for the output flange seal and bearing inner race/tapered roller bearing:

• The output flange seal is inside the pinion housing.
• Install the bearing inner race/tapered roller bearing on the output flange. Refer to Installing the Bearing Inner Race/Tapered Roller Bearing on the Output Flange

• The seal and the bearing inner race/tapered roller bearing is located on the output flange.
• Install the seal and bearing inner race/tapered roller bearing on the output flange. Refer to figure below.

Refer to the parts information for the allocation.

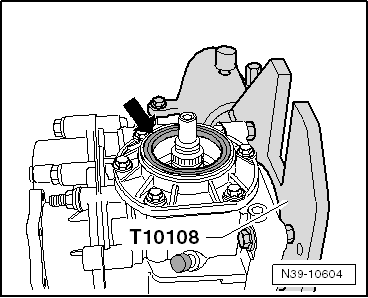

If Is Necessary to Install the Seal arrow and the Bearing Inner Race/Tapered Roller Bearing If They Were on the Output Flange as Follows:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• It is necessary to remove the pinion housing -1- with the shaft bevel gear -2- :

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts for the pinion housing -1- ; and carefully remove the pinion housing diagonally of the protruding edges.

-- Remove the pinion housing and the shaft bevel gear -2-.

-- Clean the thread on the shaft bevel gear.

• Insert the new shim -3- into the pinion housing.
• This ensures the bearing pre-load of the shaft bevel gear in the pinion housing.

-- Place the old bearing inner race/tapered roller bearing -1- into the pinion housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the new output flange seal -2-, if necessary.

-- Coat the outer circumference of new output flange seal -2- lightly with oil.

-- Drive in the seal using the :T10049  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The seal must be flush with the upper edge of the housing.

-- Fill the area between the sealing lip and the seal dust lip halfway with Sealing Grease.

-- Press in the output flange along with the pinion housing and shaft bevel gear all the way.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The shoulder -arrow- of the :VW455  points to the shaft bevel gear.

-- Install the M8 X 30 mm stud bolts = -A- or :T10273  into the axle drive housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide a new O-ring -1- onto the pinion housing -2-.

The pinion housing -2- and shim -3- only fit in one position.

-- Install the previous shim -3-.

-- Carefully install the pinion housing diagonally all the way with :VW460/2  .

There is very little space between the pinion housing and the bevel box housing.

The gap is closed when the pinion housing is tightened.

-- Tighten the bolts for the pinion housing -2- diagonally.

If the Output Shaft Seal arrow is Inside the Pinion Housing, Then Install the Output Flange as Follows:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Cover pinion housing with a lint-free cloth.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clean any remaining locking fluid from the thread on the shaft bevel gear.

• Insert the new shim -2- into the pinion housing.
• This will maintain the bearing pre-load on the shaft bevel gear -1- inside the pinion housing.

-- Place the old bearing inner race/tapered roller bearing -3- into the outer race inside the bevel box.

-- Install a new seal -4-, if necessary. Refer to DRIVESHAFT OUTPUT FLANGE SEAL ON BEVEL BOX, REPLACING .

-- Fill the space between the sealing lip and the dust lip halfway with Sealing Grease.

-- Install the output flange using the Two-Arm Puller -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A -:VAS251001  (20-10)

Note the following:

• Use a new removal hook.
• To not tilt the output flange.
• Mount the hooks on the bottom of the pinion housing.
• Tension the removal hook with the Two-Arm Puller -arrows-.
• Do not bend the removal hook toward the outside.
• Interrupt the procedure if necessary, remove the output flange again and repeat the process.

Continuation for All
