Reducing Agent Tank, Removing And Installing: Removing

-- Drain the reducing agent tank. Refer to REDUCING AGENT TANK, DRAINING .

-- Remove the right rear wheel. Refer to WHEELS AND TIRES .

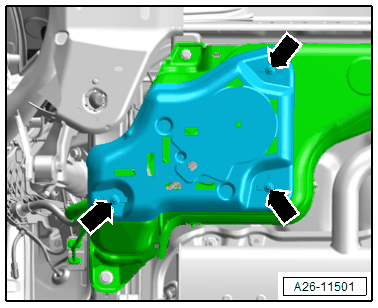

-- Remove the wheel housing liner bolt -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect and remove the connectors -3 and 4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the hose connections -1 and 5-.

-- Seal all the open lines and connections with clean plugs from the :VAS6122  .

-- Unclip the bracket -2- from the SRC hoses.

-- Remove the bolts and nuts -arrow-, and remove the reducing agent tank cover -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip and disconnect the connector -arrow- for the reducing agent ventilation line heater.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and remove the connector -2- from the Reducing Agent Quality Sensor -G849- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip all wires from the reducing agent tank.

-- Place the :VAG1383A or VAS6931  with a soft foam pad underneath to support the reducing agent tank.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- With a second mechanic to hold the reducing agent tank, remove the bolts -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower the reducing agent tank using the :VAS6931  .

-- Guide the reducing agent tank at the same time by hand.

-- Seal the open lines and connections with clean plugs from the :VAS6122  .
