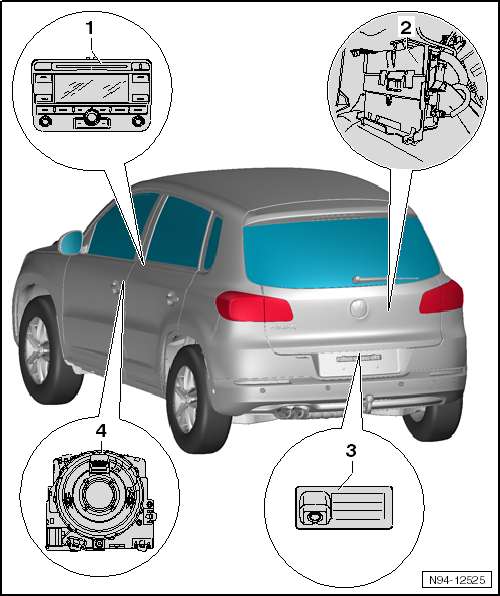

Rear View Camera System Overview
- Radio/Navigation Display Control Module -J503-
- Component location: in front center console
- Removing and installing, refer to Removal and Installation .
- Rear View Camera System Control Module -J772-
- Component location: in the luggage compartment behind the right trim panel.
- Removing and installing, refer to Rearview Camera System Control Module -J772- .
- Rear View Camera -R189-
- Tightening specification for the nuts: 6 Nm.
- Component location: in the rear lid handle.
- Removing and installing, refer to REAR VIEW CAMERA .
- Rear View Camera System, calibrating, refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Steering Angle Sensor -G85-
- Component location: inside the steering column electronics control module behind the steering column trim on the steering wheel.
- Steering Column Electronics Control Module, removing and installing, refer to Steering Column Electronic Systems Control Module -J527- WITHOUT KESSY or Steering Column Electronic Systems Control Module -J527- WITH KESSY .
