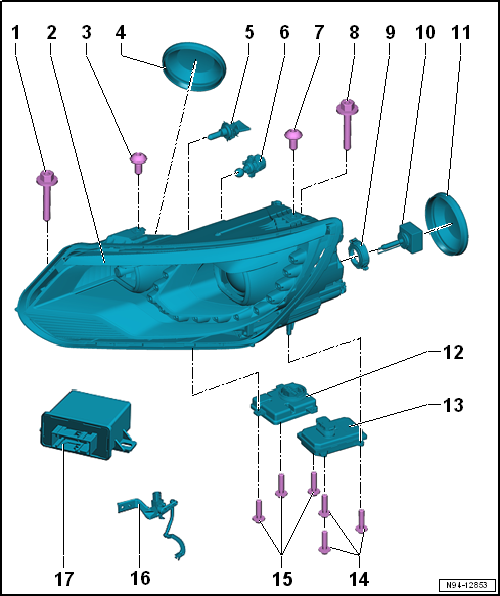

Overview HID Headlamp With Dynamic High Beam Control
NOTE:
After measures that could affect the headlamp adjustment, check the headlamp adjustment and adjust if necessary, refer to the Maintenance Procedures .
- Mounting Screw, Headlamp to Body
- 4 NM
- 6 x 40
- Headlamps
- Removing and installing, refer to HID HEADLAMP WITH DYNAMIC HIGH BEAM CONTROL .
- Correcting installation position of headlamp, refer to HID HEADLAMP WITH DYNAMIC HIGH BEAM CONTROL and HEADLAMPS, CORRECTING INSTALLATION POSITION .
- Headlamp mounting tabs, servicing, refer to HEADLAMP MOUNTING TABS, REPAIRING .
- The headlamp beam adjustment motor cannot be removed. If there is damage, replace the headlamp.
- Bolt: Headlamp to Carrier
- 4 NM
- 6 x 14
- Cap
- Left Cornering Lamp Bulb -L148- or Right Cornering Lamp Bulb -L149-
- 12V, 55 W
- Replacing, refer to LEFT/RIGHT CORNERING LIGHT BULB -L148- / -L149-, REPLACING .
- Left Front Turn Signal Bulb -M5- and Right Front Turn Signal Bulb -M7-
- Bulb 12V, PSY 24W
- Replacing, refer to LEFT/RIGHT FRONT TURN SIGNAL BULB -M5- / -M7-, REPLACING .
- Bolt: Headlamp to Carrier
- 4 NM
- 6 x 14
- Mounting Screw, Headlamp to Body
- 4 NM
- 6 x 40
- Retaining Ring for Gas-Discharge Bulb
- Is removed together with the HID headlamp bulb.
- Must be rearranged for replacing the HID headlamp bulb, refer to LEFT/RIGHT HID HEADLAMP BULB -L13- / -L14-, REPLACING .
- Left HID Headlamp Bulb -L13- or Right HID Headlamp Bulb -L14-WARNING:
Follow all Use and Safety Precautions when replacing HID bulbs, refer to HID HEADLAMPS, USAGE AND SAFETY PRECAUTIONS .
- Type DS3, 35W
- Replacing, refer to LEFT/RIGHT HID HEADLAMP BULB -L13- / -L14-, REPLACING .
- Cap
- Left HID Headlamp Control Module -J343- or Right HID Headlamp Control Module -J344-
- Removing and installing, refer to HID HEADLAMP CONTROL MODULE .
- Left Headlamp Power Output Stage -J667- or Right Headlamp Power Output Stage -J668-
- Removing and installing, refer to HEADLAMP POWER OUTPUT STAGE, REMOVING AND INSTALLING .
- Screws Connect the Headlamp Power Output Stage to the Headlamp
- 3 Nm
- Screw Secure HID Headlamp Control Module to the Headlamp
- 3 Nm
- Left Rear Level Control System Sensor -G76-
- Removing and installing, refer to Left Rear Level Control System Sensor -G76- .
- Checking, refer to Level Control System Sensor --, CHECKING .
- Cornering Lamp And Headlamp Range Control Module -J745-
- Removing and Installing, refer to Cornering Lamp And Headlamp Range Control Module -J745-
- Coding, refer to Cornering Lamp And Headlamp Range Control Module -J745-, CODING .
