Headlamp Housing Repair Set, Installing

Special Tools And Workshop Equipment Required

NOTE:

Headlamp mounting tabs that have broken off can be replaced by installing the repair set. Completely replacing the headlamp is not necessary.

There are different repair kits for left and right headlamps. Refer to Parts Information.

The removal and installation is described for the left side. Removing and installing on the right side is identical.

-- Remove the headlamp with the broken tabs. Refer to HEADLAMP, REMOVING AND INSTALLING .

-- Remove the rest of the broken tab on the headlamp housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

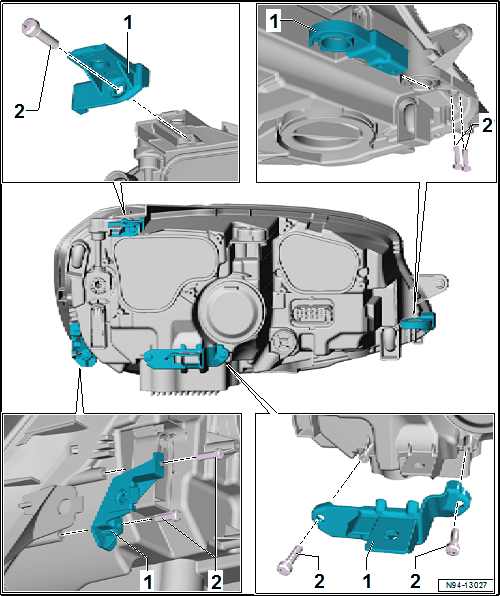

-- Install the repair kit mounting tab -1- on the headlamp.

-- Install the bolts -2-.

-- Install the headlamp and align to the body contour.

-- Perform a functionality test.

-- Check the headlamp adjustment and aim the headlamp if necessary. Refer to HEADLAMP ADJUSTMENT, CHECKING, LED HEADLAMPS .

Tightening Specifications
