Overview - Headlamp Housing Repair Set

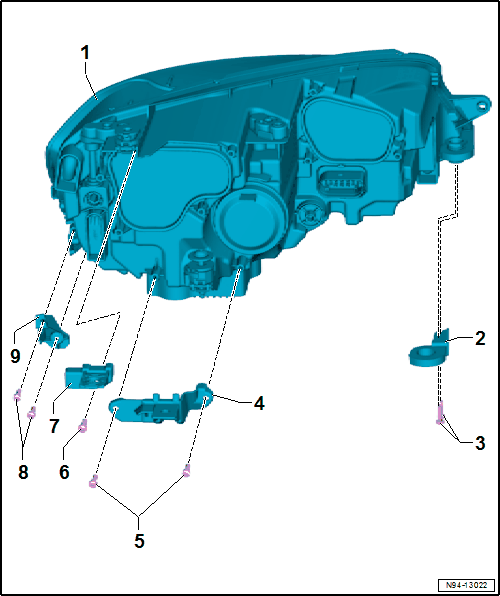

Fig 1: Exploded View Of Headlamp Housing Repair Kit, LED Headlamps Only

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Headlamps
Inner Mounting Tab
- Removing and installing. Refer to HEADLAMP HOUSING REPAIR SET, INSTALLING .
Bolt
- 2 Nm
- Quantity: 2
Rear Mounting Tab
- Removing and installing. Refer to HEADLAMP HOUSING REPAIR SET, INSTALLING .
Bolt
- 2 Nm
- Quantity: 2
Bolt
- 2 Nm
- Quantity: 1
Upper Mounting Tab
- Removing and installing. Refer to HEADLAMP HOUSING REPAIR SET, INSTALLING .
Bolt
- 2 Nm
- Quantity: 2
Outer Mounting Tab
- Removing and installing. Refer to HEADLAMP HOUSING REPAIR SET, INSTALLING .
