Remove Exit Air Connecting Duct
WARNING: This page is about a different variant/trim than selected.
-- Remove the left exhaust air duct. Refer to Removing Left Exhaust Air Duct .
-- Remove the right exhaust air duct. Refer to Removing Right Exhaust Air Duct .
-- Remove the Hybrid Battery Unit -AX1-. Refer to Hybrid Battery Unit -AX1-, REMOVING AND INSTALLING .

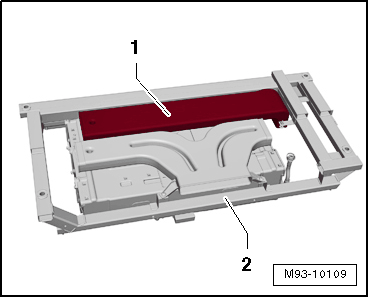

-- Remove the lower exhaust air connecting duct -1- from the Hybrid Battery Unit -AX1- -2-.
