Removing Left Exhaust Air Duct
WARNING: This page is about a different variant/trim than selected.
-- Remove the nuts -arrows- on the reinforcement -1- and then remove the reinforcement -1- from the Hybrid Battery Unit -AX1-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

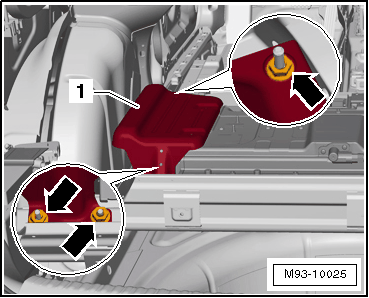

-- Remove the screws from the exhaust air guide -1- -arrows- and then remove the exhaust air guide -1-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
