Component Location Overview - Seals

WARNING: This page is about a different variant/trim than selected.

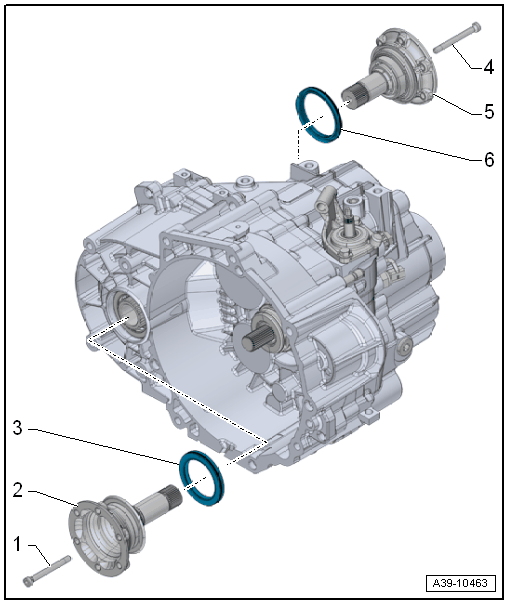

Fig 1: Exploded View Of Transmission Flange Shaft Seals Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- For right flange shaft to transmission
- Tightening specification. Refer to OVERVIEW - DIFFERENTIAL .
Right Flange Shaft
Seal
- For the right flange shaft
- Replace when the transmission is installed. Refer to RIGHT SEAL, REPLACING .
Bolt
- For left flange shaft to the transmission
- Tightening specification. Refer to OVERVIEW - DIFFERENTIAL .
Left Flange Shaft
Seal
- For the left flange shaft
- Replace when the transmission is installed. Refer to LEFT SEAL, REPLACING .
