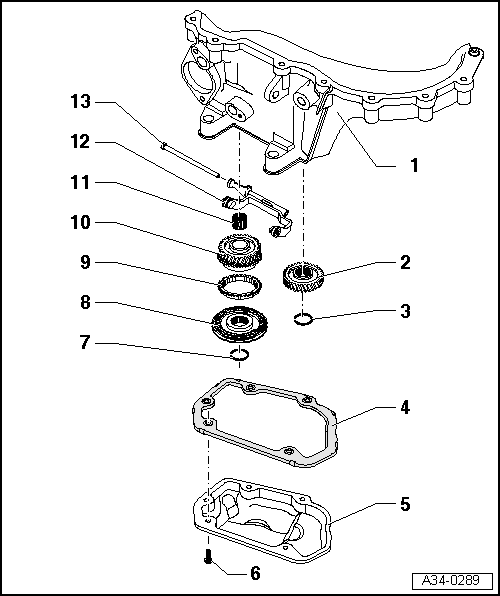

Overview - Transmission Housing Cover And 5TH Gear
WARNING: This page is about a different variant/trim than selected.
- Transmission Housing
- 5th Gear Wheel
- Installed position. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
- Circlip
- Replace after removing
- Selecting thickness. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
- Seal
- Transmission Housing Cover
- If the transmission housing cover is installed when transmission is installed, the oil level must be checked and the transmission fluid filled. Refer to TRANSMISSION FLUID .
- Bolt
- 5 Nm +90°
- Replace after removing
- Circlip
- Replace after removing
- Selecting thickness. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
- Synchronizer Hub with Locking Collar and Stop Ring for 5th Gear
- Disassembling and Assembling. Refer to INPUT SHAFT, DISASSEMBLING AND ASSEMBLING .
- 5th Gear Synchronizer Ring
- 5th Gear Wheel
- Needle Bearing
- For 5th gear
- 5th Gear Shift Fork
- Disassembling and Assembling. Refer to SHIFT FORKS, SERVICING .
- Mounting Pin
- For 5th gear shift fork
