Outer Driveshaft, Disassembling And Assembling: Notes

Special Tools And Workshop Equipment Required

• Press Plate :VW401

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Plate :VW402
• Press Piece - Reverse Gear Syncro :3296

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Multi-Pin Connector Tool :T10211

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Overview - Exterior Driveshaft

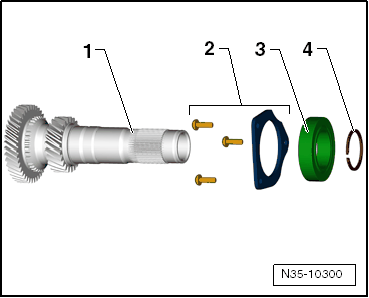

Fig 1: Exploded View Of Exterior Driveshaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Exterior Driveshaft
2. Retaining plate with bolts: lettering points toward the gear - flat side to the bearing. Tightening specification: 8 Nm + 90°
3. Bearing: pressing off (refer to Pressing Off Bearing Of Outer Driveshaft ), pressing on (refer to Installing New Bearing All The Way For Outer Driveshaft ).
4. Circlip determining thickness. Refer to the first figure in Fitting The Circlip .
