Fitting The Circlip
WARNING: This page is about a different variant/trim than selected.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

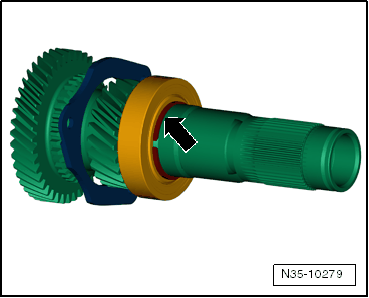

The goal is to secure the bearing without play using the circlip. For this find the ring that fits in the groove without play.

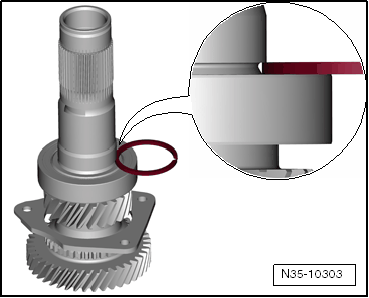

-- Push the ring all around in the groove.
