Overview - Cylinder Head: Notes

WARNING: This page is about a different variant/trim than selected.

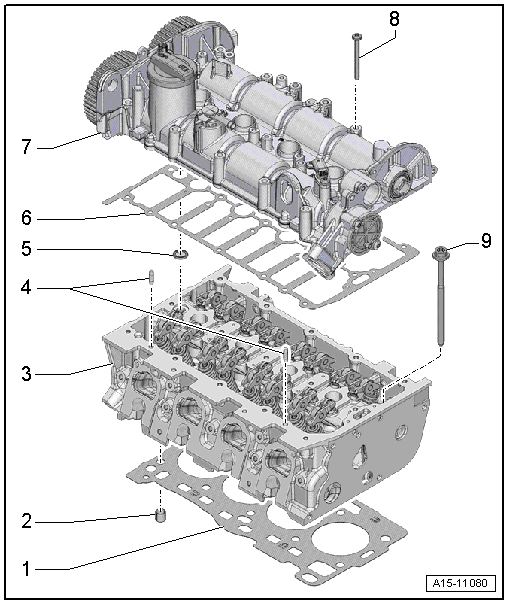

Fig 1: Exploded View Of Cylinder Head

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cylinder Head Gasket
- Replace after removing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Installed position: the part number faces the cylinder head
Alignment Sleeve
- Quantity: 2
Cylinder Head
- Removing and installing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Checking for distortion. Refer to Checking Cylinder Head For Distortion .
Alignment Pins
Seal
- With oil strainer
- Installed in the cylinder head
  NOTE:
  The oil screen may only be installed if the cylinder head has the corresponding recess for it.

  Cylinder heads without a recess do not require an oil screen.
Seal
- Replace after removing.
Camshaft Housing
- Removing and installing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
Bolt

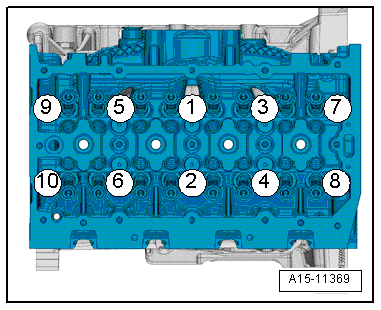

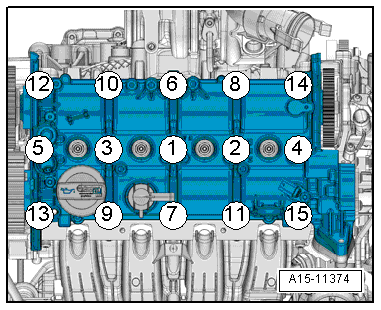

- Tightening specification and sequence. Refer to Figure.
Bolt
- Loosening sequence. Refer to Removing .
- Tightening specification and sequence. Refer to Figure.
- Replace after removing.
