Overview - Ribbed Belt Drive, Vehicles Without A/C Compressor

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

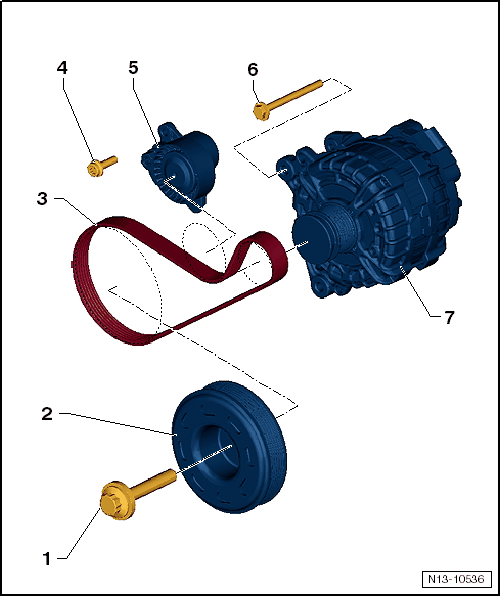

Fig 1: Exploded View Of Ribbed Belt Drive, Vehicles Without A/C Compressor
GWWN13-10536Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 150 Nm +180°
    • Replace after removing.
  2. Vibration Damper
  3. Ribbed Belt
    • Check for wear
    • Do not kink
    • Allocate the length of the ribbed belt based on the version of the generator decoupling belt pulley.
    • Ribbed belt routing. Refer to Installing .
    • Removing and installing. Refer to RIBBED BELT, REMOVING AND INSTALLING .
  4. Bolt
    • 20 Nm +90°
    • Replace after removing.
  5. Ribbed Belt Tensioner
  6. Bolt
    • Tightening specification. Refer to GENERATOR .
  7. Generator
    • Removing and installing. Refer to GENERATOR .
    • With freewheel
    • Different decoupling belt pulleys -A and B- could be installed depending on the type and version of the generator. Refer to the figure below;.
GWWN27-11163Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
