Ribbed Belt, Removing And Installing, Vehicles Without A/C Compressor: Installing

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal and note the following:

Different decoupling belt pulleys -A and B- could be installed depending on the type and version of the generator.

Allocate the length of the ribbed belt based on the version of the generator decoupling belt pulley.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

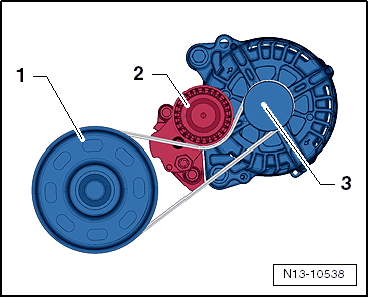

-- Position The Ribbed Belt As Shown

Vibration Damper
Ribbed Belt Tensioner
Generator

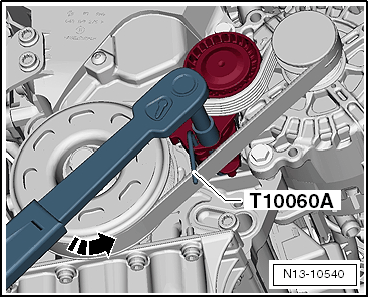

-- Turn the tensioner in the direction of -arrow- and remove the :T10060A .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the tension on the tensioner.

-- Check whether the ribbed belt is routed correctly.

-- Start the engine and check whether the ribbed belt runs correctly.
