Overview - SUBFRAME Mount: Notes

WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

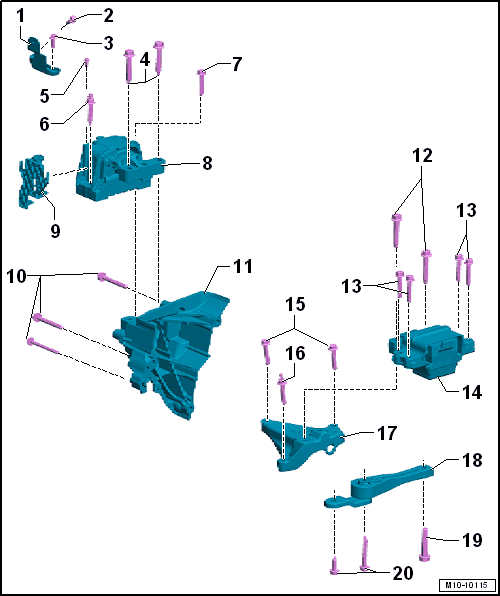

Fig 1: Exploded View Of Subframe Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket
Bolt
- 20 Nm + 90°
- Replace after removing.
- Bracket to engine mount and body
Bolt
- 20 Nm + 90°
- Replace after removing.
- Bracket to engine mount and body
Bolts
- 60 Nm +90°
- Replace after removing.
- Engine mount to engine support
Bolt
- 20 Nm + 90°
- Replace after removing.
- For the EVAP canister bracket
Double Bolt
- 40 Nm + 90°
- Replace after removing.
- Engine mount to body
Bolt
- 40 Nm + 90°
- Replace after removing.
- Engine mount to body
Engine Mount
- Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Bracket
- For the EVAP canister
Bolt
- Engine support to engine
- Replace after removing.
- Tightening specification. Refer to figure under Tightening Specifications .
Engine Support
- Removing and installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
Bolt
- 60 Nm +90°
- Replace after removing.
- Transmission mount to transmission support
Bolt
- 40 Nm + 90°
- Replace after removing.
- Transmission mount to body
Transmission Mount
- The illustration shows the DSG^® transmission version
Bolt
- Transmission support to transmission
- Vehicles with a manual transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING (02Q, 02QA) , TRANSMISSION, REMOVING AND INSTALLING (0CG) or TRANSMISSION, REMOVING AND INSTALLING (0AF) .
- Vehicles with a DSG^® transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING (02Q, 02QA) , TRANSMISSION, REMOVING AND INSTALLING (0CG) or TRANSMISSION, REMOVING AND INSTALLING (0AF) .
Double Bolt
- Transmission support to transmission
- Vehicles with a manual transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING (02Q, 02QA) , TRANSMISSION, REMOVING AND INSTALLING (0CG) or TRANSMISSION, REMOVING AND INSTALLING (0AF) .
- Vehicles with a DSG^® transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING (02Q, 02QA) , TRANSMISSION, REMOVING AND INSTALLING (0CG) or TRANSMISSION, REMOVING AND INSTALLING (0AF) .
Transmission Support
Pendulum Support
- Removing and installing. Refer to Pendulum Support Tightening Specifications And Sequence .
- First install the pendulum support to the transmission and then to the subframe
Bolt
- Replace after removing.
- Tightening specification. Refer to Pendulum Support Tightening Specifications And Sequence .
- Pendulum support to subframe
Bolts
- Replace after removing.
- Tightening specification. Refer to Pendulum Support Tightening Specifications And Sequence .
- Pendulum support to transmission
