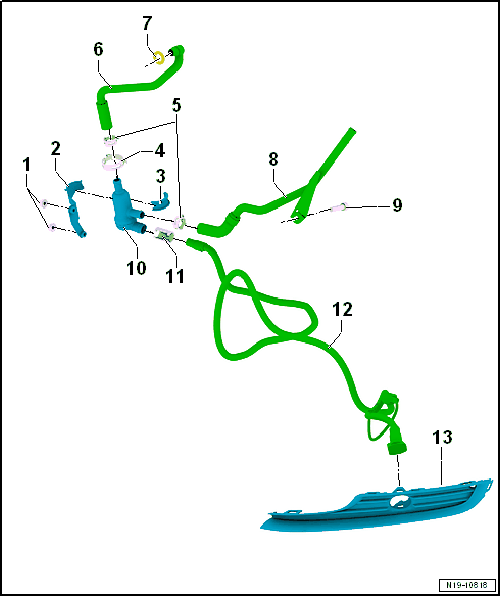

Overview - Engine PREHEATER
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, and 2016 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 10 Nm
- Bracket
- Note the installation position. Refer to Engine Preheating Element -Z97-, REMOVING AND INSTALLING .
- Protective Pad
- Note the installation position. Refer to Engine Preheating Element -Z97-, REMOVING AND INSTALLING .
- Clamp
- Note the installation position. Refer to Engine Preheating Element -Z97-, REMOVING AND INSTALLING .
- Hose Clamp
- Coolant Hose
- To the engine
- Coolant Hose Connection Diagram. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
- O-ring
- Coolant Hose
- Coolant Hose Connection Diagram. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
- Bolt
- 9 Nm
- Engine Preheating Element -Z97-
- Removing and installing. Refer to Engine Preheating Element -Z97-, REMOVING AND INSTALLING .
- Clip
- Connecting Cable
- 220 V
- Front Trim
