Overview - Seals

NOTE:

Do not remove all the bolts in the left and right flange shafts at the same time. If the differential bevel gears inside the differential rotate, it will be difficult to install the bolts.

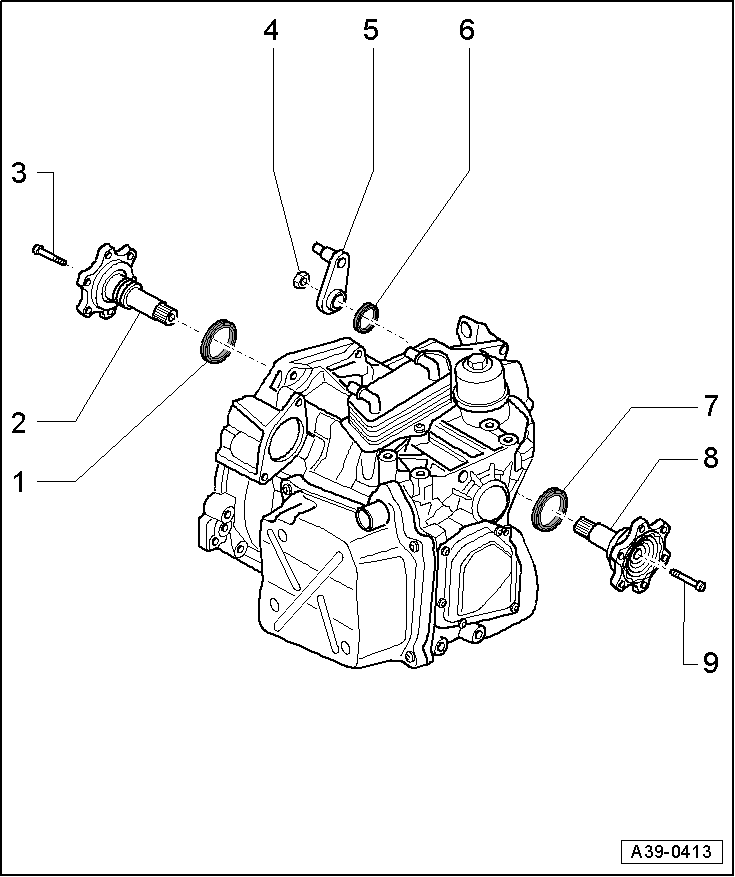

Fig 1: Exploded View Of Transmission Seals Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Flange Shaft Seal
- Replacing. Refer to RIGHT SEAL, REPLACING .
Right Flange Shaft
- Removing and Installing. Refer to RIGHT SEAL, REPLACING .
Bolt
- 30 Nm
- Replace after removing
Nut
- Replace after removing
- Tightening Specification. Refer to OVERVIEW - TRANSMISSION .
Selector Lever
Selector Shaft Seal
- Replacing. Refer to SELECTOR SHAFT SEAL, REPLACING .
Left Flange Shaft Seal
- Replacing. Refer to LEFT SEAL, REPLACING .
Left Flange Shaft
- Removing and Installing. Refer to LEFT SEAL, REPLACING .
Bolt
- 30 Nm
- Replace after removing
