Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

• Measuring Bar :VW382/7  from the Special Socket & Measuring Tools :VW382
• Measuring Set - Magnetic Plate 50mm : VW385/17  from Measuring Set :VW385
• Dial Gauge - 0-10mm :VAS6079

Special Tools And Workshop Equipment Required

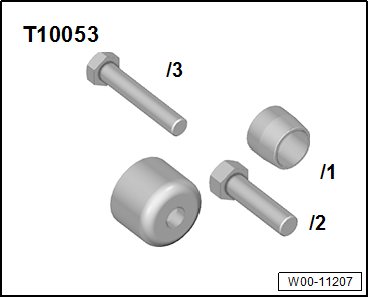

• Seal Installer - Crankshaft Seal :T10053

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Locking Pin :T10060A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Seal Installer - Rear Crankshaft :T10134

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Torque Wrench 1332 Insert - Open Ring Wrench - 24mm :VAG1332/11

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Depth Gauge :VAS6082

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Bearing Installer - Bearing Press Piece :VW207C

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Pilot Drift :VW222A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Dial Gauge Holder :VW387

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Puller - Kukko Internal - 14-19mm :VAS5251605

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Adapter Puller - Kukko Counterstay :VAS251621

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Flywheel Retainer :3067

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Counterhold - Crankshaft Sprocket :3415

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
