Sensor Wheel, Pressing On

WARNING: This page is about a different variant/trim than selected.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

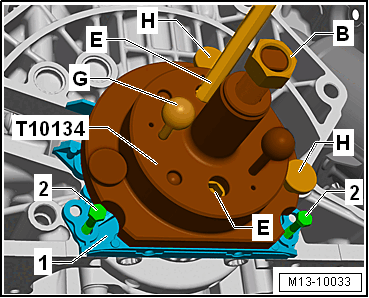

-- Secure the :T10134 on the crankshaft flange.

-- Pay attention that the :T10134 locating pin is seated in the sensor wheel hole.

-- Tighten the hex socket bolts -E- hand-tight.

-- Push the :T10134 by hand to the sealing flange -1-.

-- Install the nut -B- as far as possible on the threaded spindle by hand until it touches the :T10134 .

-- Insert the guide pin for diesel engines (black handle) -G- in the crankshaft flange.

-- Push the knurled bolts -H- in the sealing flange -1-.

-- Install two M6 x 35 bolts -2- into the cylinder block to guide the sealing flange.

-- Tighten the :T10134 nut -B- to 40 Nm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check the sensor wheel installation position on the crankshaft one more time. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .

-- Tighten the nut on the :T10134 to 45 Nm if the specified value is too small.

-- Check the sensor wheel installation position on the crankshaft one more time. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .
