Coolant Pump, Removing And Installing

WARNING: This page is about a different car, the 2014 Volkswagen Jetta, 2013 Volkswagen Jetta, 2012 Volkswagen Jetta, and 2011 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Drip Tray VAG1306 or Shop Crane - Drip Tray VAS6208
Torque Wrench 1331 5-50Nm VAG1331
Hose Clip Pliers

Removing

NOTE:

Replace the gaskets and seals.

The lower toothed belt guard can remain installed.

The toothed belt remains in position on the crankshaft sprocket.

Cover the toothed belt with a cloth to protect it from coolant before removing the coolant pump.

-- Drain the coolant, refer to COOLANT, DRAINING AND FILLING .

-- Remove the ribbed belt, refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Remove the ribbed belt tensioning damper.

-- Remove the upper and center toothed belt guards.

-- Remove toothed belt from coolant pump toothed belt sprocket, refer to TOOTHED BELT, REMOVING AND INSTALLING .

-- Remove the bolt -1- from the rear toothed belt guard -2-.

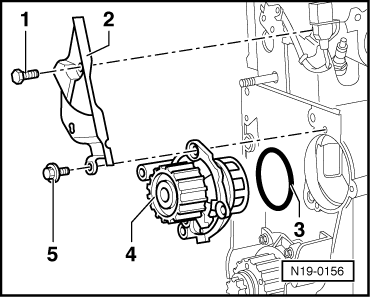

Fig 1: Identifying Securing Bolts, Rear Toothed Belt Guard & Coolant Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -5- for the coolant pump and then remove the coolant pump -4-.

Installing

Install in reverse order of removal. Note the following:

-- Coat the new O-ring -3- with coolant.

Fig 2: Identifying Securing Bolts, Rear Toothed Belt Guard & Coolant Pump

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the coolant pump -4-.

Installed position: Plug in housing points downward

-- Tighten the bolts -5-.

Tightening specification: 15 Nm

-- Install the bolt -1- for the rear toothed belt guard -2- on the cylinder head.

Tightening specification: 20 Nm

-- Install the toothed belt, refer to TOOTHED BELT, REMOVING AND INSTALLING .

-- Install the ribbed belt tensioning element.

Tightening specification: 25 Nm

-- Install the ribbed belt, refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Fill the coolant, refer to COOLANT, DRAINING AND FILLING .
