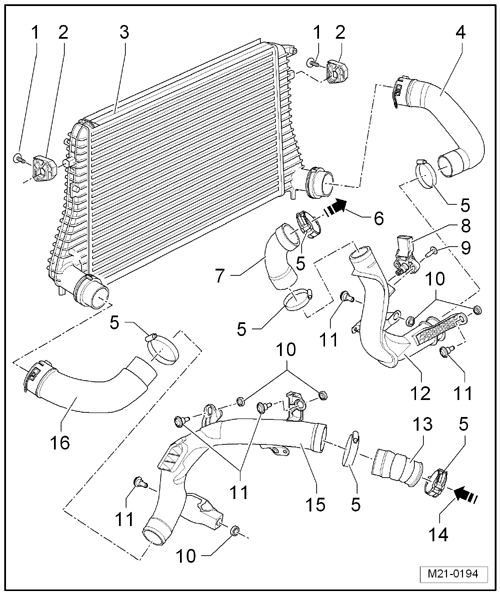

Charge Air Cooler Component Overview
WARNING: This page is about a different car, the 2014 Volkswagen Jetta, 2013 Volkswagen Jetta, 2012 Volkswagen Jetta, and 2011 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Follow the safety precautions when working on the charge air system and turbocharger. Refer to SAFETY PRECAUTIONS .
- Observe the rules for cleanliness. Refer to CLEAN WORKING CONDITIONS .
Always follow these instructions before and during work.
- Bolt
- 5 Nm
- Mount
- For the charge air cooler.
- Charge Air Cooler
- To remove, move the lock carrier into the service position. Refer to Description and Operation .
- Charge Air Hose
- Cold side, bottom.
- Ensure the hose is seated securely.
- Replace the gasket if it is damaged or if it leaks.
- Charge air cooler hose disconnecting and connecting. Refer to CHARGE AIR COOLER HOSE, DISCONNECTING AND CONNECTING .
- Clamp
- 5 Nm
- To the Throttle Valve Control Module -J338-
- Charge Air Hose
- Cold side, top
- Ensure the hose is seated securely.
- Charge Air Pressure Sensor -G31-
- With the intake air temperature sensor.
- Bolt
- 3 Nm
- Rubber Grommet
- Replace if damaged.
- Bolt
- 8 Nm
- Charge Air Pipe
- Cold side.
- Charge Air Hose
- Hot side, top
- Ensure the hose is seated securely.
- From the Turbocharger
- Charge Air Pipe
- Hot side.
- Charge Air Hose
- Hot side, bottom.
- Ensure the hose is seated securely.
- Replace the gasket if it is damaged or if it leaks.
- Charge air hose connecting and disconnecting. Refer to CHARGE AIR COOLER HOSE, DISCONNECTING AND CONNECTING .
