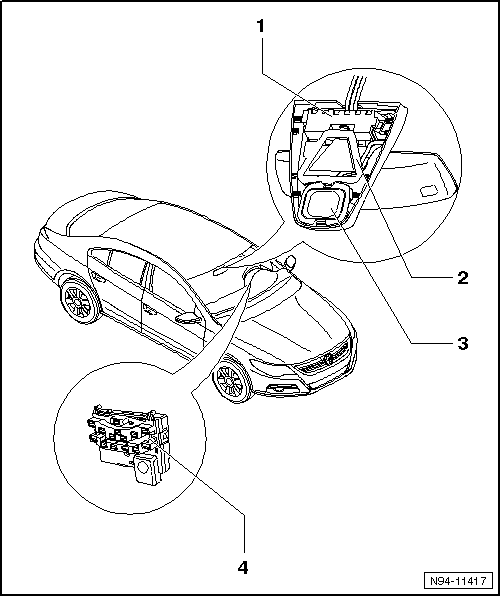

Lane Assist Overview
- Directional Stabilization Assistance Control Module -J759- with Camera
- Installed location: inside the mount for the interior rearview mirror
- Removing and installing, refer to DIRECTIONAL STABILIZATION ASSISTANCE CONTROL MODULE .
- Calibrating, refer to LANE ASSIST CAMERA, CALIBRATING .
- Coding, refer to DIRECTIONAL STABILIZATION ASSISTANCE CONTROL MODULE, CODING .
- Directional Stabilization Assistance Windshield Defogger -Z67-
- Installed location: inside the mount for the interior rearview mirror
- Removing and installing, refer to DIRECTIONAL STABILIZATION ASSISTANCE WINDSHIELD DEFOGGER .
- Rain/Light Recognition Sensor -G397-
- Installed location: inside the mount for the interior rearview mirror
- Removing and installing, refer to Rain/Light Recognition Sensor -G397- .
- Steering Angle Sensor -G85-
- Installed location: in the steering column switch trim, behind the steering wheel
- Removing and installing, refer to Steering Angle Sensor -G85- THROUGH 10/2009 .
