Overview - Automatic Head Lamp Range Control

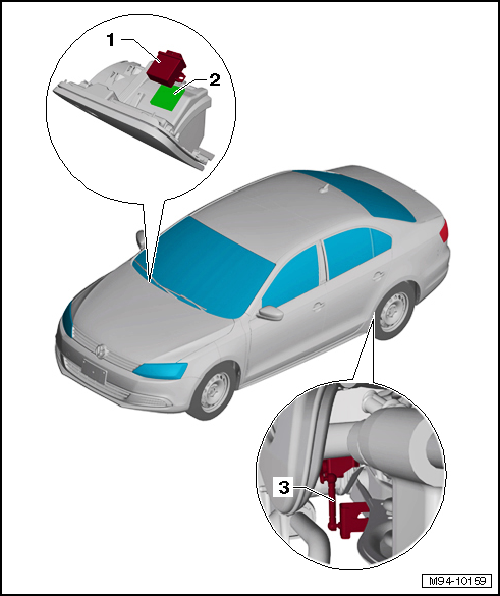

Fig 1: Automatic Head Lamp Range Control Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Cornering Lamp and Headlamp Range Control Module -J745-
   • Removing and installing, refer to Cornering Lamp and Headlamp Range Control Module -J745- .
   • Replacing, refer to Cornering Lamp and Headlamp Range Control Module -J745-, REPLACING .
2. Adhesive Pad
3. Left Rear Level Control System Sensor -G76-
   • Removing and installing, refer to LEFT REAR LEVEL CONTROL SYSTEM SENSOR -G76- .
