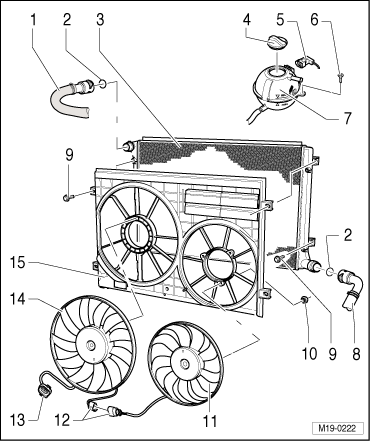

Cooling System Components Assembly Overview, Body Side
WARNING: This page is about a different car, the 2006 Volkswagen Jetta and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Radiator
- Removing and installing RADIATOR .
- After replacing replace entire amount of coolant
- O-ring
- Replace if damaged
- Upper coolant hose
- Coolant hose connection diagram COOLANT HOSE CONNECTION DIAGRAM .
- Cap
- Check with cooling system tester V.A.G 1274 and adapter V.A.G 1274/9 COOLING SYSTEM, CHECKING FOR LEAKS .
- Test pressure 1.4 to 1.6 bar
- Connector
- 3 Nm
- Expansion tank
- With Engine Coolant Temperature (ECT) sensor - G32-
- Check with cooling system tester V.A.G 1274 and adapter V.A.G 1274/8 COOLING SYSTEM, CHECKING FOR LEAKS .
- Lower coolant hose
- Coolant hose connection diagram COOLANT HOSE CONNECTION DIAGRAM .
- 5 Nm
- 5 Nm
- Coolant Fan 2 -V177-
- Only vehicles with optional equipment
- Removing and installing COOLANT FANS .
- Connector
- Connector
- Coolant Fan 1 -V7-
- With Coolant Fan Control (FC) control module -J293-
- Removing and installing COOLANT FANS .
- Fan support
