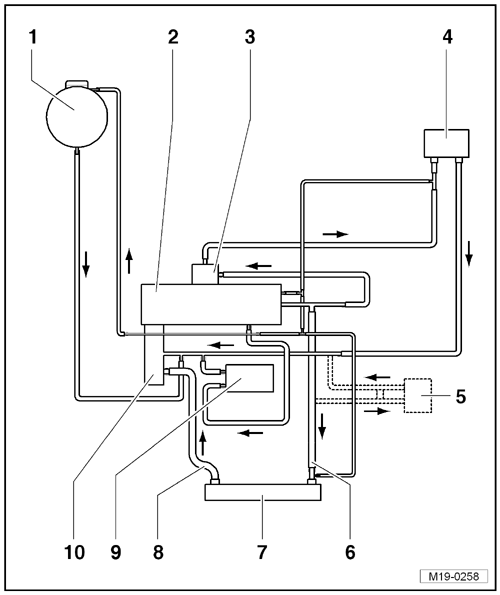

Coolant Hose Connection Diagram
WARNING: This page is about a different car, the 2006 Volkswagen Jetta and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Expansion tank
- Cylinder head/cylinder block
- Cooler for Exhaust Gas Recirculation (EGR)
- Heater unit heat exchanger
- Oil cooler
- For transmission oil
- Only on vehicles equipped with DSG transmission
- Upper coolant hose
- Radiator
- Lower coolant hose
- Oil cooler
- For engine oil
- Coolant pump/thermostat
