Ribbed Drive Belt Assembly Overview

WARNING: This page is about a different car, the 2006 Volkswagen Jetta and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

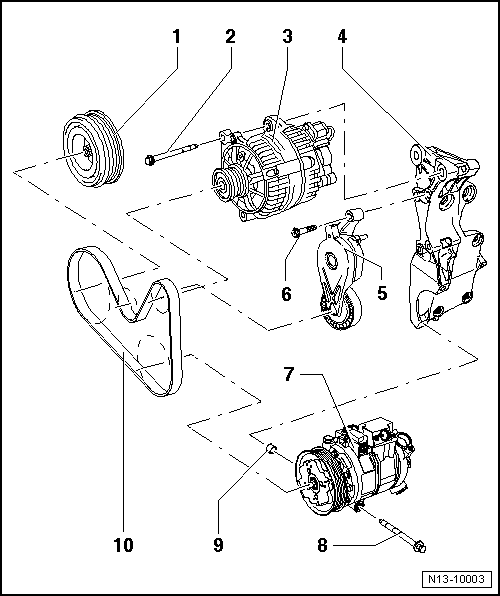

Fig 1: Ribbed Belt Drive, Assembly Overview
GWWN13-10003Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Vibration damper
    • Only possible to install in one position - Bores are offset
  2. 25 Nm
  3. Generator
  4. Bracket
    • For generator and A/C compressor
  5. Tensioner
    • To release tension on ribbed belt, pivot using an open-end wrench
  6. 25 Nm
  7. Air conditioner compressor
  8. 25 Nm
  9. Fitting sleeves
  10. Ribbed belt
    • Mark direction of rotation before removing
    • Check for wear
    • Do not kink
    • Removing and installing RIBBED DRIVE BELT .
