Ribbed Drive Belt

Special tools and workshop equipment required

• DriftT10060A

Removing

-- Remove noise insulation Removal and Installation .

-- Remove engine cover.

One Piece Engine Cover

Fig 1: Identifying Removal Of One Piece Engine Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Pull the one piece front engine cover -arrows A- upward with a quick jerk and then pull the lower mount -arrow B- forward.

Two Piece Engine Cover

Fig 2: Identifying Removal Of Two Piece Engine Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

On the two piece engine cover, first pull the outer cover upward with a quick jerk -arrows in the upper illustration-, then pull the inner engine cover upward with a quick jerk -arrows in lower illustration-.

Fuel Filter Without the Retaining Plate

-- Release the retainers, pull the fuel filter with connected hoses upward and out of the retaining plate -arrow- and lay it aside.

Fig 3: Identifying Direction To Pull Fuel Filter Out Of Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fuel Filter With the Retaining Plate

-- Loosen the bolt -1- one turn.

Fig 4: View Of Fuel Filter Retaining Plate

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- and the nut -3-.

-- Lay the fuel filter, with the hoses still connected, to the side.

Continuation for All

-- Mark direction of rotation of ribbed belt.

-- Pivot tensioner element in -direction of arrow- to relieve tension on ribbed belt.

Fig 5: Identifying Method To Relieve Tension On Poly V-Belt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure tensioner element using the drift T10060 A.

Fig 6: Identifying Lock Tensioner With Locking Pin T10060 A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove ribbed belt.

Installing

-- Installation is performed in reverse order. When doing this note the following:

After completing repairs always:

-- Start the engine and check the running belt.

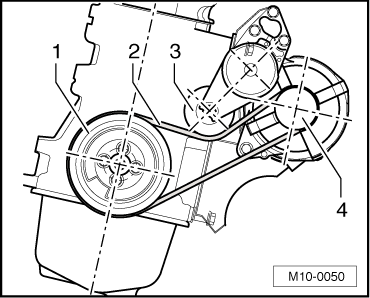

Fig 7: Identifying Belt Drive Without Air Conditioning Compressor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Pulley - crankshaft
2. Ribbed belt
3. Tensioner
4. Pulley - generator

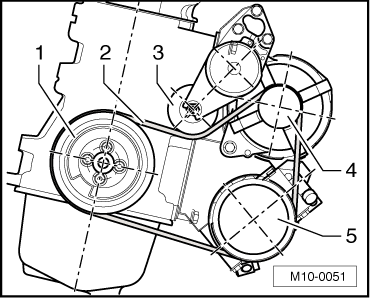

Fig 8: Identifying Belt Drive With Air Conditioning Compressor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Pulley - crankshaft
2. Ribbed belt
3. Tensioner
4. Pulley - generator
5. Pulley - air conditioning compressor
