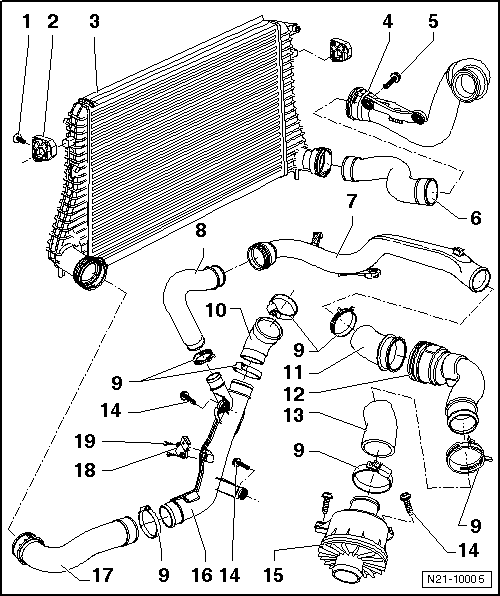

Charge Air Cooler Assembly Overview
WARNING: This page is about a different car, the 2008 Volkswagen Jetta, 2008 Volkswagen GLI, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt, 5 Nm
- Mount
- For the charge air cooler.
- Charge Air Cooler
- Removing and installing, refer to CHARGE AIR COOLER .
- Charge Air Pipe
- Bolt, 8 Nm
- Charge Air Hose
- Charge Air Pipe
- To the sound amplifier.
- Charge Air Hose
- Hose Clamp
- Charge Air Hose
- To the throttle valve control module.
- Charge Air Hose
- Charge Air Pipe
- Charge Air Hose
- Bolt, 8 Nm
- Sound Amplifier
- Charge Air Pipe
- Charge Air Hose
- Charge Air Pressure Sensor -G31-
- Bolt, 5 Nm
