Intake Manifold
Special tools and workshop equipment required
- Hose clamps up to 25 mm dia. 3094
- Torque wrench V.A.G 1331
- Torque wrench V.A.G 1410
- Spring-type clip pliers VAS 5024A
Removing
-- Remove engine cover.
One Piece Engine Cover
Pull the one piece front engine cover -arrows A- upward with a quick jerk and then pull the lower mount -arrow B- forward.
Selecting Diagnosis Function
On the two piece engine cover, first pull the outer cover upward with a quick jerk -arrows in the upper illustration-, then pull the inner engine cover upward with a quick jerk -arrows in lower illustration-.
The hoses -2- remain connected.
-- Remove air duct. To do this slightly lift the clips -1- and remove the bolt -3- from the transport strap.
-- Disconnect connector -arrow- at intake flap motor -V157-.
-- Remove bolts -1 to 3 - and remove intake flap motor -V157-.
-- Remove intake connection with EGR potentiometer -G212- and EGR vacuum regulator solenoid valve -N18-, refer to INTAKE CONNECTION WITH ELECTRICAL EGR VACUUM REGULATOR SOLENOID VALVE AND POTENTIOMETER .
-- Remove the turbocharger, refer to TURBOCHARGER .

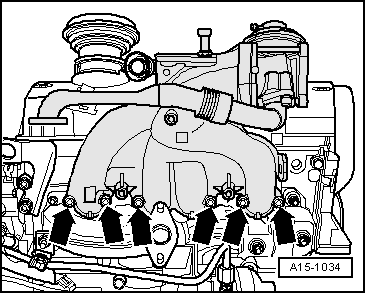

-- Remove intake manifold -arrows-.
Installing
Installation is performed in reverse order. When doing this note the following:
Always replace gaskets and seals.
Observe installed position of intake manifold gasket.
Pay attention to the information when installing the air guide pipe to the connector, refer to WITH CONNECTION COUPLINGS .
Secure all hose connections with hose clamps.
-- Fill with coolant, refer to COOLING SYSTEM, DRAINING AND FILLING .
Tightening Specifications
| Component | Nm | |
|---|---|---|
| Intake manifold to cylinder head | 22 | |
| Engine lifting eyelet to cylinder head | 20 | |
| Bracket to intake manifold | 10 | |
| Connecting pipe to intake manifold connection bolt | 22 | |
| EGR cooler to intake manifold | 10 | |
| Intake Flap Motor -V157- to intake manifold | 10 | |
