Intake Connection With Electrical EGR Vacuum Regulator Solenoid Valve And Potentiometer

WARNING: This page is about a different car, the 2006 Volkswagen Jetta and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Wet and dry vacuum VAS 5128
Brush with plastic bristles

Disassembling

-- Remove the intake connection together with the EGR potentiometer -G212- with the EGR vacuum regulator solenoid valve -N18-, refer to INTAKE CONNECTION WITH ELECTRICAL EGR VACUUM REGULATOR SOLENOID VALVE AND POTENTIOMETER .

-- Carefully remove the bolts -1- and the EGR potentiometer -G212- together with the EGR vacuum regulator solenoid valve -N18- -2- from the intake connection -4-

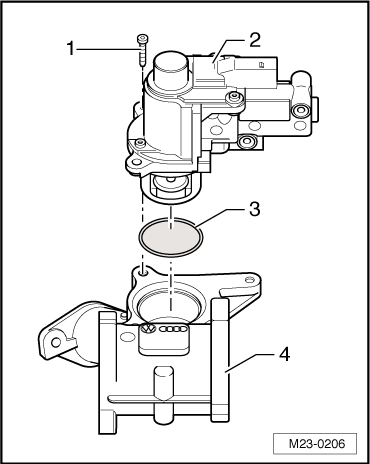

Fig 1: Identifying Bolts -1-, EGR Potentiometer -G212-, EGR Vacuum Regulator Solenoid Valve -N18- -2- And Intake Connection -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Use a brush with plastic bristles to clean the rusty surfaces on the exhaust gas return valve seat. Then remove loose rust with a cloth.

-- Line inner intake manifold with a lint free cloth to protect against soot particles.

-- Clean the exhaust gas return valve seat in the intake manifold using a brush with plastic bristles and a cloth. Make sure no rust particles get into the intake manifold.

-- Take the cloth out of the intake manifold and clean the intake manifold with a wet and dry vacuum VAS 5128 if necessary.

Assembling

-- Replace O-ring -3-.

-- Carefully mount the EGR potentiometer -G212- together with the EGR vacuum regulator solenoid valve -N18- -2- into the intake manifold seat -4- and tighten the bolts -1- to 10 Nm.

Fig 2: Identifying Bolts -1-, EGR Potentiometer -G212-, EGR Vacuum Regulator Solenoid Valve -N18- -2- And Intake Connection -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
