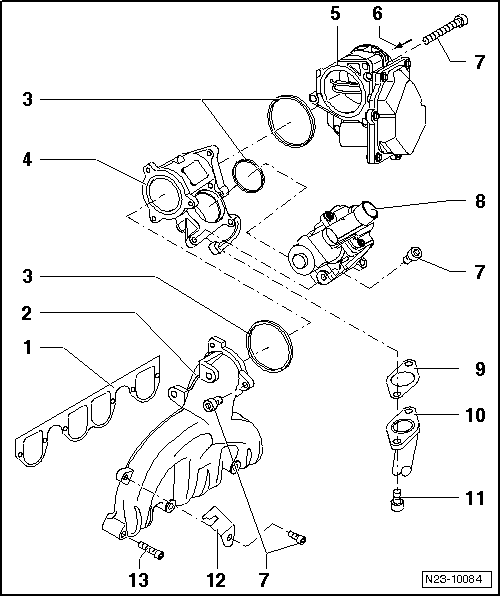

Intake Manifold Assembly Overview
WARNING: This page is about a different car, the 2006 Volkswagen Jetta and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Gasket
- Replace
- Intake manifold
- Tighten the bolts to 22 Nm.
- Seal
- Replace
- Intake connection
- Intake flap motor -V157-
- When engine is switched off, the intake manifold flap is closed for approximately 3 seconds and then opens again. This reduces the stop jolt.
- From charge air cooler
- 10 Nm
- Electrical EGR vacuum regulator solenoid valve - N18- with EGR potentiometer -G212-
- Exhaust gas recirculation, assembly overview, refer to EGR SYSTEM ASSEMBLY OVERVIEW .
- Gasket
- Replace
- Connecting pipe
- To cooler for exhaust gas recirculation
- Exhaust gas recirculation components, assembly overview, refer to EGR SYSTEM ASSEMBLY OVERVIEW .
- 22 Nm
- Bracket
- For harness connector
- 22 Nm
