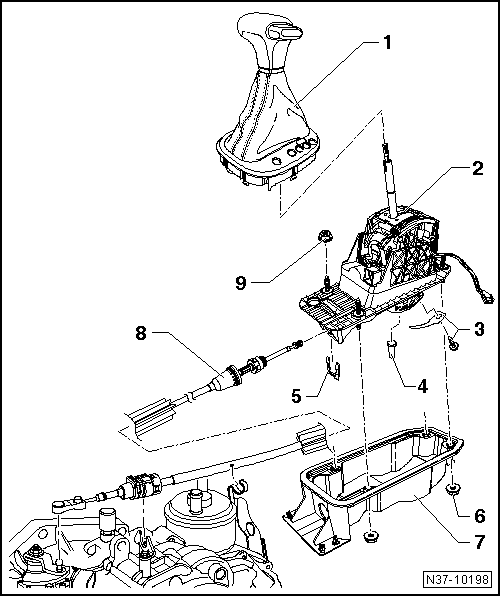

Selector Mechanism, Through 02.2009: Overview
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen Golf, 2008 Volkswagen Jetta, and 2008 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Move the selector lever into the "P" position and set the parking brake before working with the engine running.
- Shift Cover with Handle
- Do not remove the handle unnecessarily. For emergency release, only the cover must be removed. Refer to SELECTOR LEVER, MANUAL RELEASE .
- Pull the button past its pressure point before removing the handle. Secure the button with a cable tie or some suitable wire. This prevents the button from being pushed back into the handle accidentally.
- If the button is pushed in:
-- Just before installing, pull out button beyond the pressure point (sense this by touch).
- Selector Mechanism with Selector Lever
- Removing and installing, refer to SHIFT MECHANISM WITH LEVER .
- Bolt with Spring
- 3 Nm
- Bolt
- Removing, refer to SELECTOR LEVER CABLE THROUGH 02.2009 .
- Do not lubricate.
- Securing Plate
- Always replace after removing.
- Nut
- 9 Nm
- Quantity: 4
- Shift Housing
- With seal.
- Selector Lever Cable
- Do not grease cable.
- Removing and installing, refer to SELECTOR LEVER CABLE THROUGH 02.2009 .
- Checking, refer to SELECTOR LEVER CABLE THROUGH 02.2009, CHECKING .
- Adjusting, refer to SELECTOR LEVER CABLE, ADJUSTING .
- Nut
- 8 Nm
- Quantity: 4
