Selector Lever, Manual Release

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen Golf, 2008 Volkswagen Jetta, and 2008 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Do not remove the handle.

-- Unclip the shift cover and move it to the side.

-- Press the brake or set the parking brake.

-- Press on the yellow plastic piece from the right to the left -arrow-.

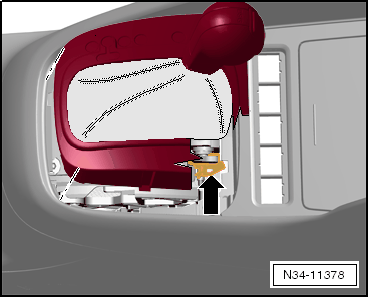

Fig 1: Identifying Leather Boot And Trim
GWWN34-11378Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The handle can now be moved out of the "P" position.
