Power Backrest Adjustment Bracket And Lever

Removal

-- Remove the right trim panel on the seat with power lumbar adjustment. Refer to RIGHT SEAT TRIM PANEL WITH POWER LUMBAR ADJUSTMENT

-- Remove the two bolts -4- (3.5 Nm) and remove operating lever -3-.

-- Remove the two bolts -2- (3.5 Nm) and remove bracket -1-.

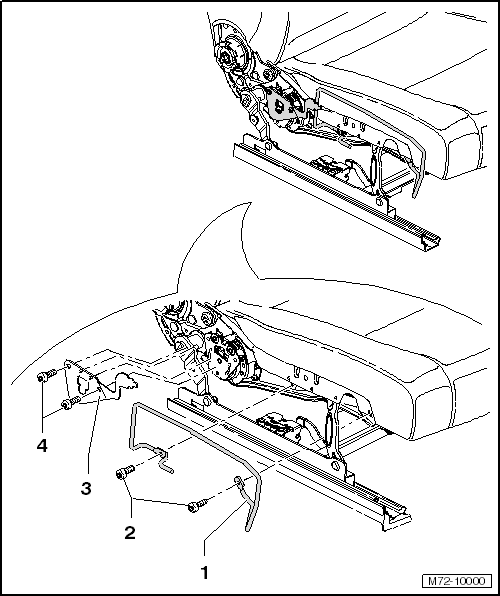

Fig 1: Identifying Power Backrest Adjustment Bracket And Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
