Right Seat Trim Panel With Power Lumbar Adjustment

Removal

-- Press metal tab of securing clip -2- inward using a small screwdriver and pull off handle -3- from adjustment lever -1-.

NOTE:

For clarity, securing clip is depicted as removed in the illustration.

-- Remove the clip -2- from adjusting lever -1-.

-- Using 3399, reach behind a locking mechanism of backrest adjusting wheel -8-.

-- Pry 3399 outward -arrow A- and remove backrest adjusting wheel from seat.

-- Press clamping pin -7- and remove the clip -6-.

-- Pull the trim panel -5- toward the front of the vehicle and out of the mounts inside the seat frame and disconnect the wire from the switch -4-.

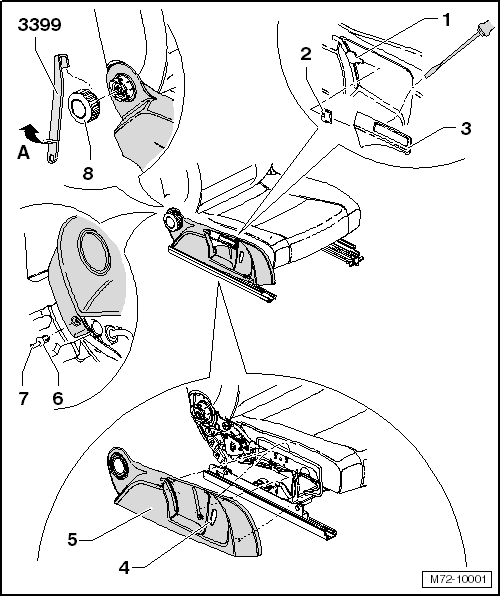

Fig 1: Identifying Right Seat Trim Panel With Power Lumbar Adjustment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

-- To install, perform the steps used for removal in reverse order.
