Bumper Cover Attachments

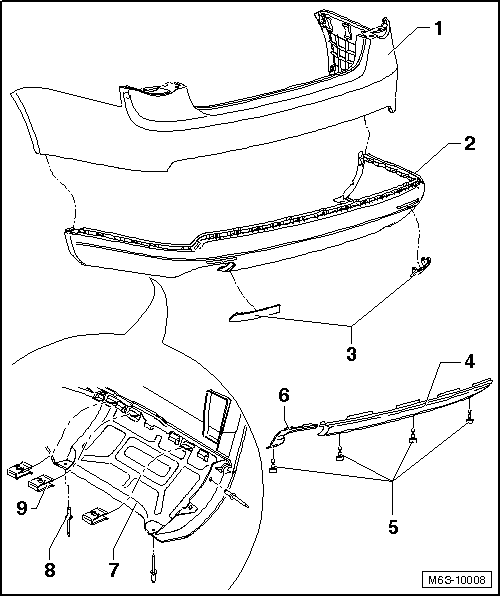

Fig 1: Bumper Cover Attachments

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Bumper Cover
- PP/EPDM material
- Removing and installing, refer to REAR BUMPER COVER, CUP EDITION .
Spoiler
- Engage in the rear bumper cover -1-.
- Can only be removed when rear bumper cover is removed.
Rear Reflector
- Left and right
- Secured to spoiler
Diffuser
Quick Release Screw
- Quantity: 4
Left Diffuser
Heat Shield Plate
Pop Rivet
- Quantity: 3
- Install with Pop rivet pliersVAS 5072
Clips
- Quantity: 3
