Rear Bumper Cover, Cup Edition
Before replacing the bumper cover, see if it is possible to repair the damage.
Removing
-- Remove side luggage compartment cover. Refer to Removal and Installation .
-- Remove tail lamp assembly in side panel on left and right. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) BRM, BGP, BPY, BGQ, CBTA, CBEA, CJAA, CBUA, CCTA, CBFA] Removal and Installation .

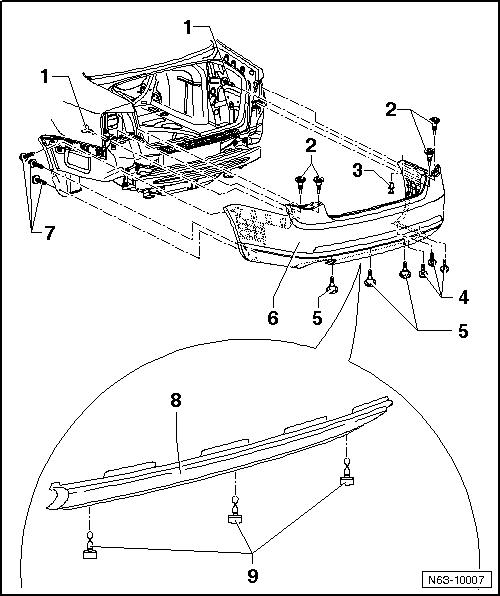

-- Release the quick release -9- and remove the diffuser -8- from the spoiler.
-- Remove screws -7- in area of left and right wheel housing liner.
-- Pry out left and right expanding rivet -3- using a screwdriver.
-- Remove bolts -4- and -5- from below.
-- Remove bolts -2- from above on left and right sides.
-- Remove the bolt -1- on the left and right from the luggage compartment.
A second mechanic is required for the rest of the removal procedure.
-- With a second mechanic, pull rear bumper cover -6- parallel out of guide profiles.
-- Disconnect harness connectors of installed electrical components.
Installation
-- With the help of a second technician, guide the rear bumper cover parallel to the right and left guide profile.
Be sure to hold the rear bumper cover parallel when inserting it into the left and right guides.
-- Install the left and right expanding rivets -3-.
-- Install the screws -1, 2, 4, 5 and 7- and tighten them to the tightening specification. Refer to BUMPER COVER OVERVIEW .
-- Install the diffuser -8- and install the quick release bolt -9-.
Install in reverse order of removal.
